MeriCrusher MJHS
PTO-Driven Mulcher

Power Range 200 – 750 hp

Rotor Diameter 600mm / 24″

Working Depth 300mm / 12″

MJHS Forestry Tiller and Mulcher
for Heavy Duty Land and Forestry Clearing

Designed for medium and large tractors up to 750 hp, the MeriCrusher MJHS mulcher is engineered for heavy-duty forestry and land clearing where effectiveness and durability are vital. With a subsoil working depth of 12″ (300mm), the MJH/G series is equipped with dual G-series gear transmissions, while the MJH/X series features a single or dual X-series gear transmission. Modular design and engineering allow for optimal selection of components for efficient operation, and future upgrades.

Typical working environments

FOREST

  • Crushing of harvesting leftovers
  • Preparing of hauling lines
  • Soil preparing for planting
  • Maintenance of forest roads
  • Clearing of vegetation and undergrowth

CONSTRUCTION

  • Clearing of building sites
  • Crushing of stumps
  • Clearing of power lines
  • Right of way clearing
  • Clearing of firebreaks

AGRICULTURE

  • Clearing of new farm land
    (forest to farm clearing)
  • Reclaiming soil for farming
  • Orchard clearing
  • Farm road maintenance

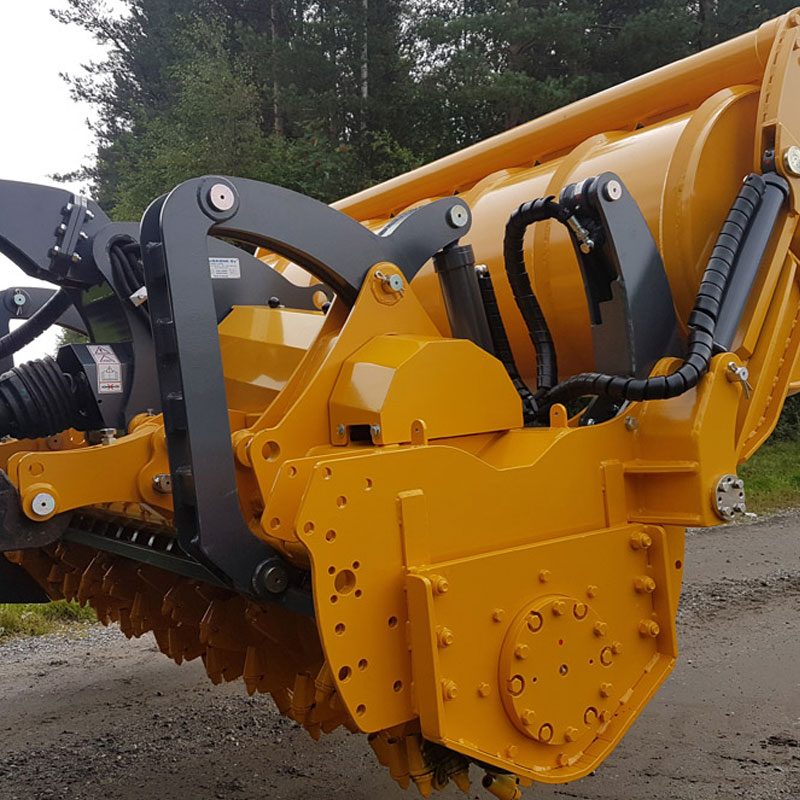

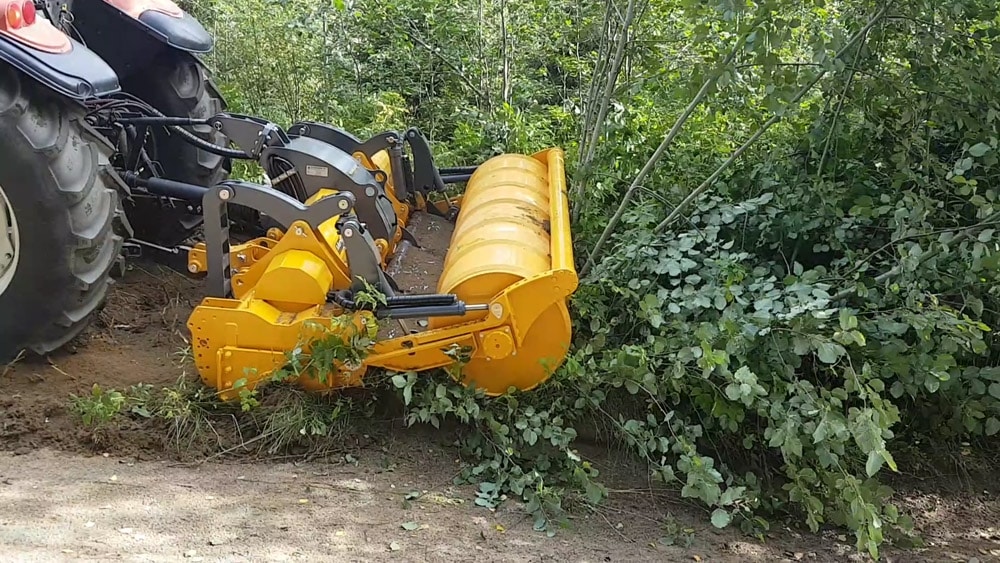

MJHS - MULCHER

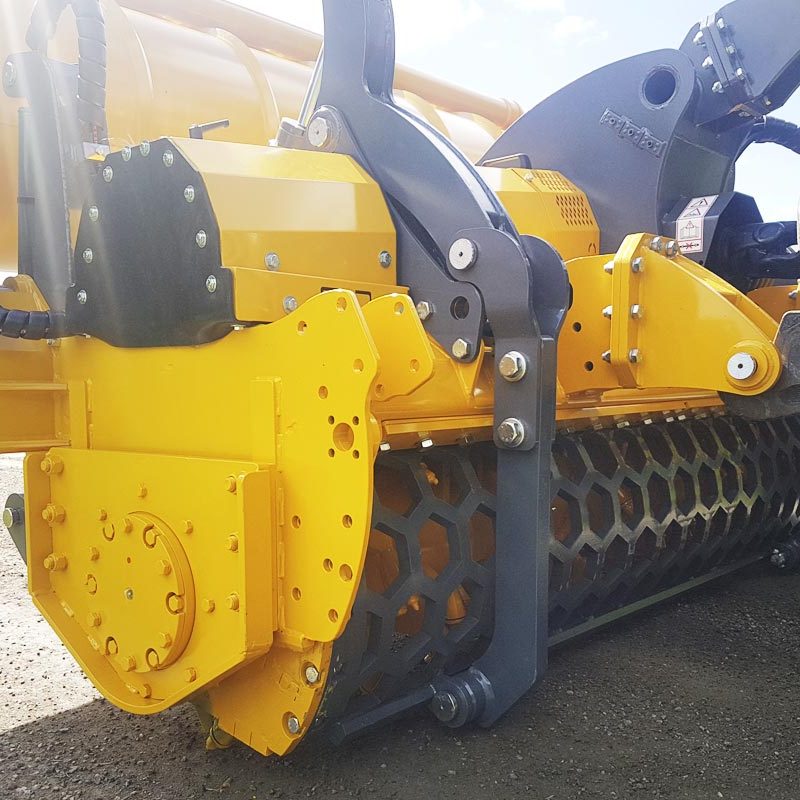

(Patented Sizing Screen)

Mulcher for projects requiring finely screened material

The MeriCrusher MJHS PTO-driven mulcher is ideal for medium and large tractors up to 750 hp. With the latest crushing technology, MeriCrusher’s MJHS-rotating sizing screen series forestry tillers are engineered for the most demanding of projects. For the MJHS all transmission options are available. DTG / STX for 200 – 400 hp tractors and DTX for tractors up to 750 hp. Suokone-designed and made gear transmissions are protected by the Patented Suokone POC safety clutch, and full power transfer is assured. In MJHS-forestry mulchers the wear parts around the rotor chamber are designed to be bolt-on, body wear liner, counter blades, side gearbox guards, etc. Bolt-on attachments allow the use of special wear materials in places where it is most needed. The optimized shape of the rotor chamber improves the material flow and increases productivity. With several rotor options and a patented rotating sizing screen, the MeriCrusher MJHS mulcher gives extremely fine results in all conditions and allows you to work deep in the ground.

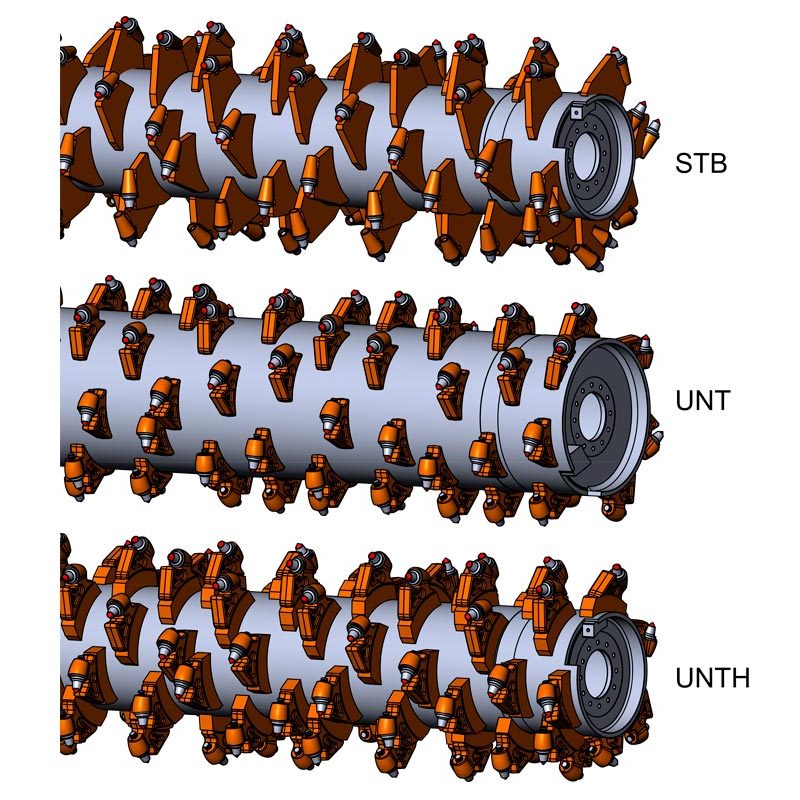

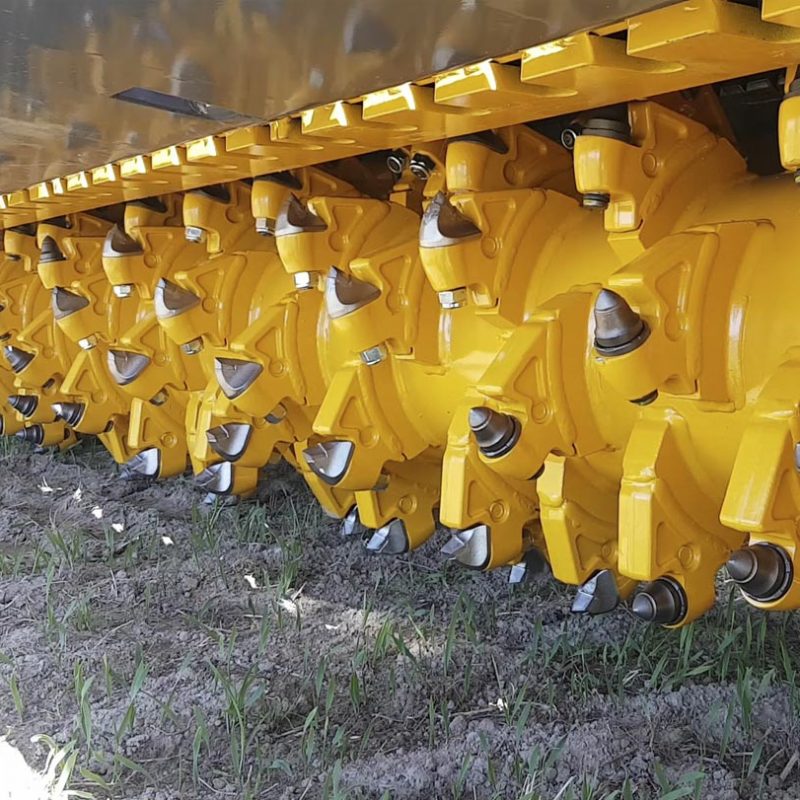

  • STB rotor with cost-effective carbide cutters for heavy soil and dense vegetation.
  • UNT rotor with cost-effective carbide cutters and extra durable, forged cutter holders for more abrasive and demanding conditions
  • UNTH rotor with cost-effective conical carbide cutter and extra durable, forged cutter holders for heavy soil and abrasive conditions. UNTH rotor gathers the best features of STB and UNT rotor into one.

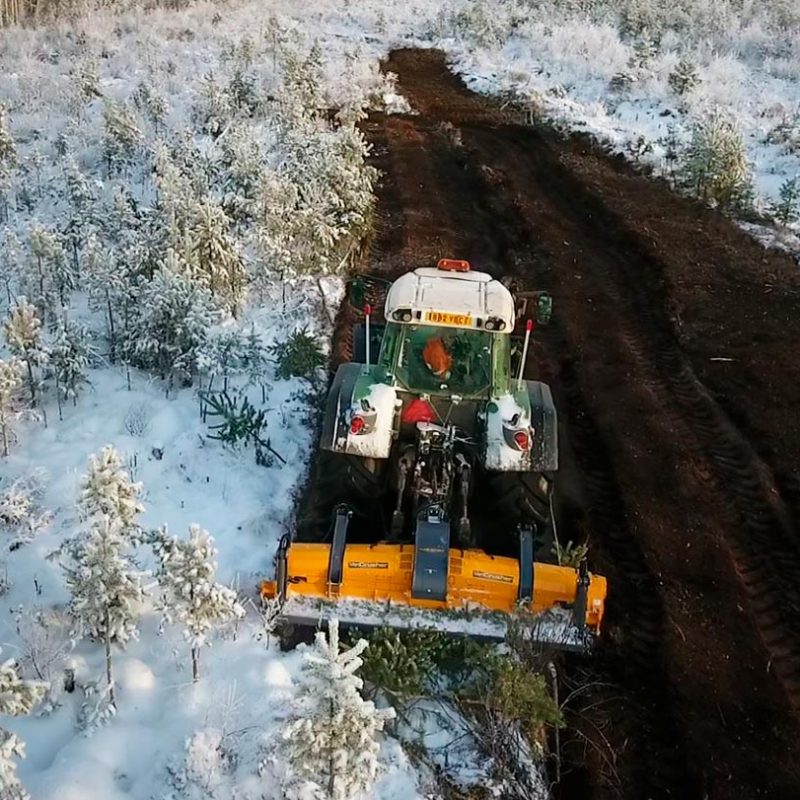

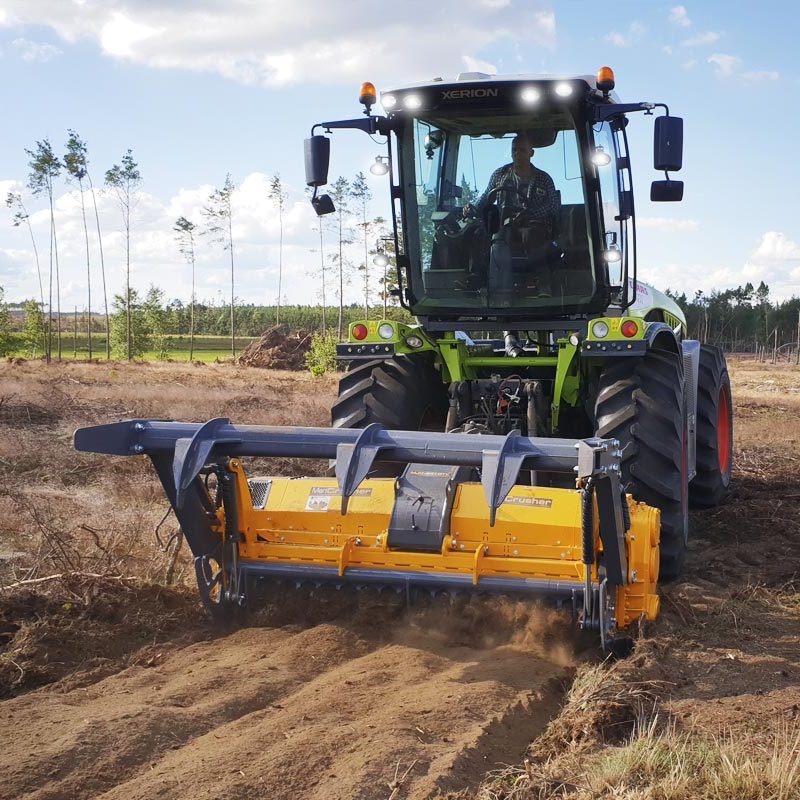

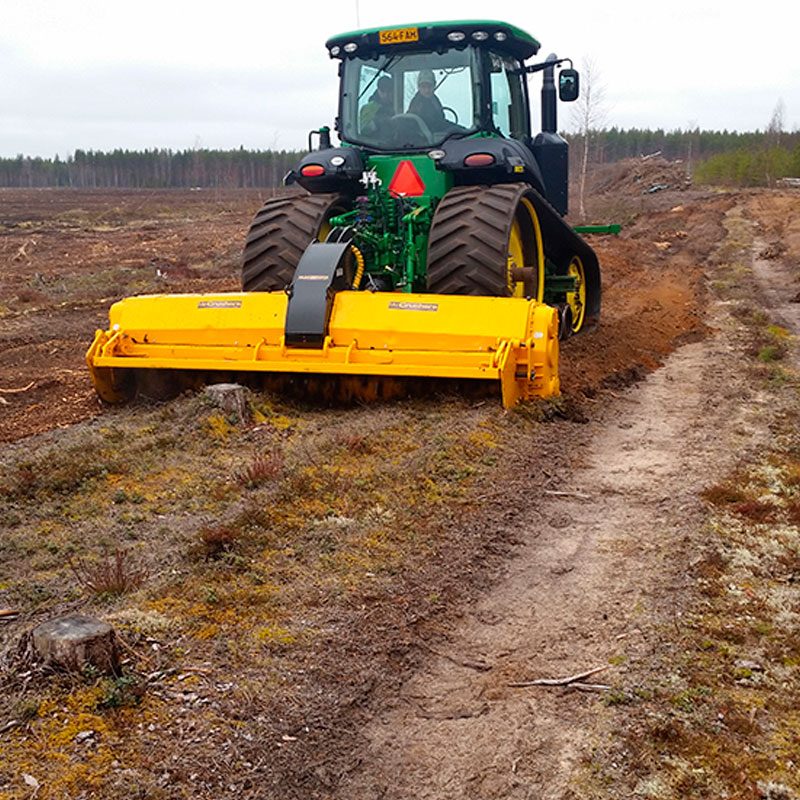

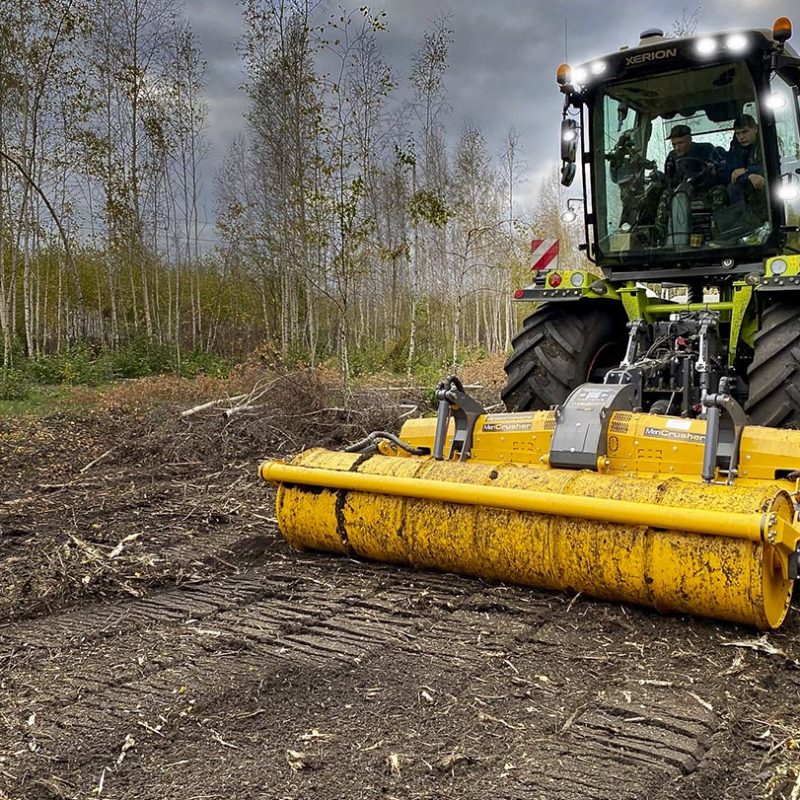

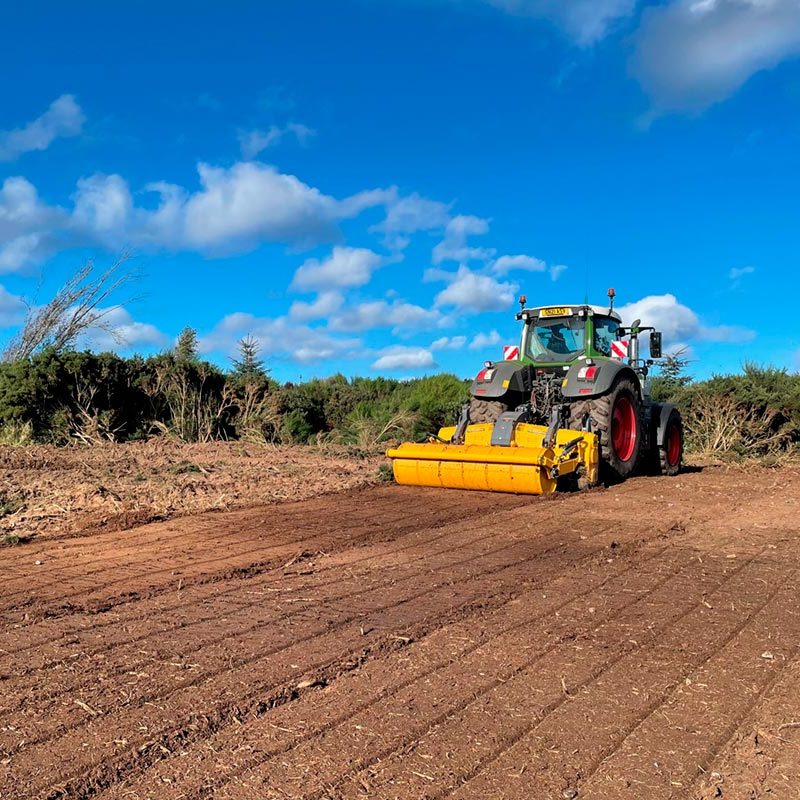

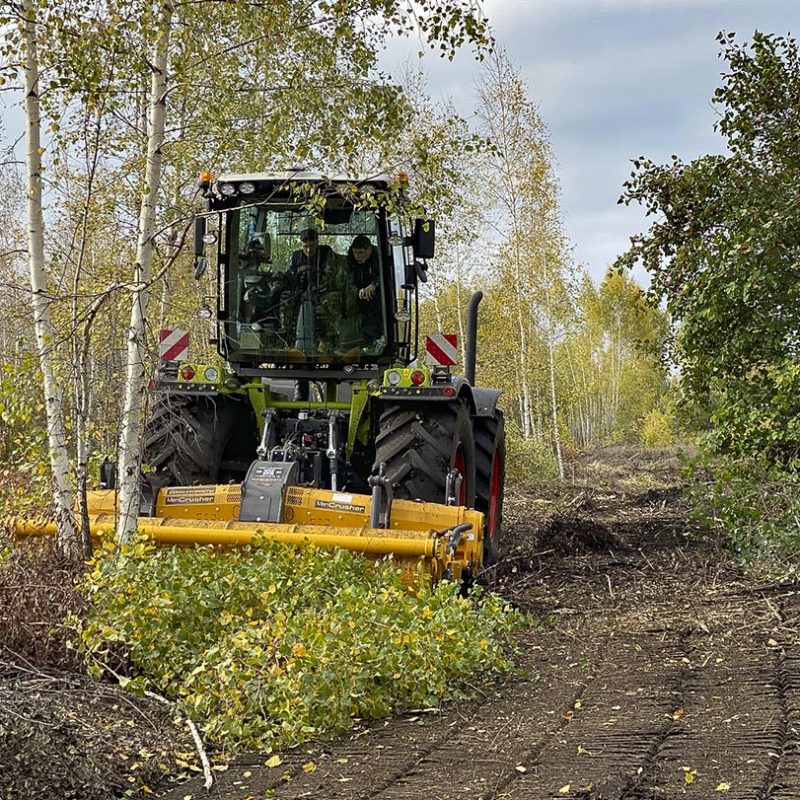

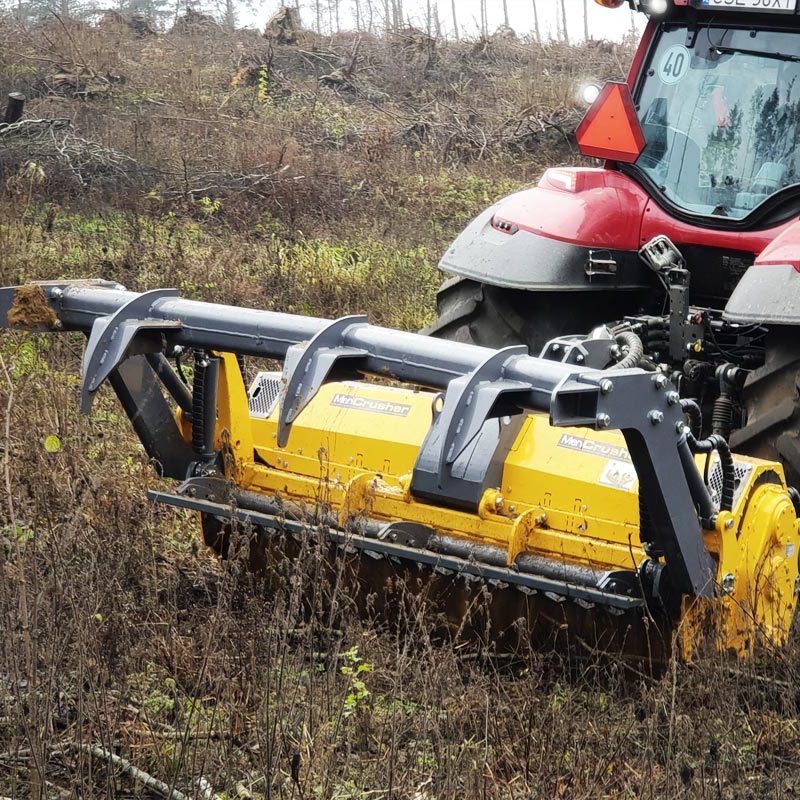

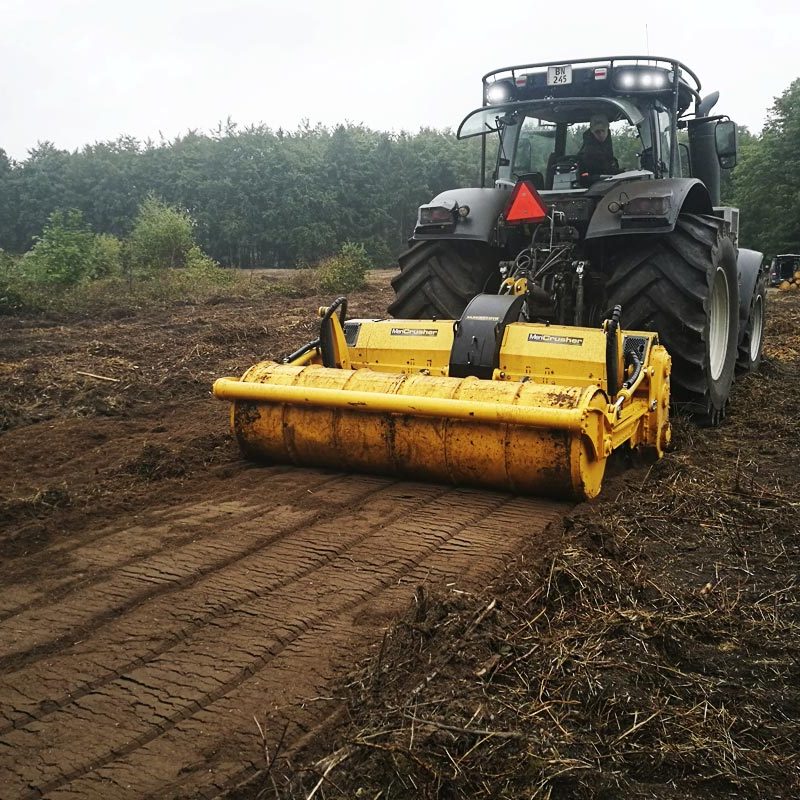

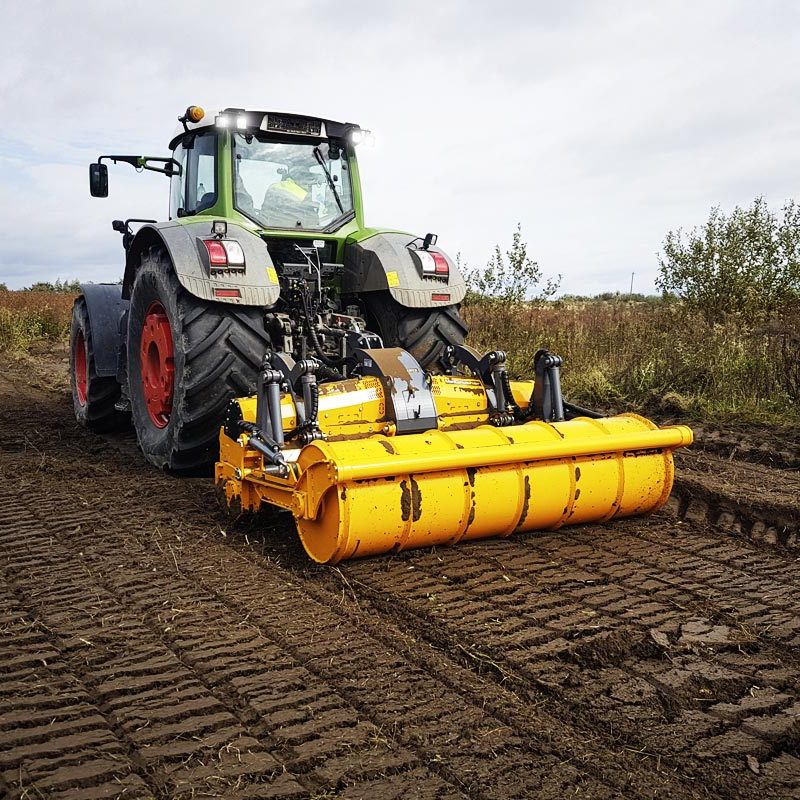

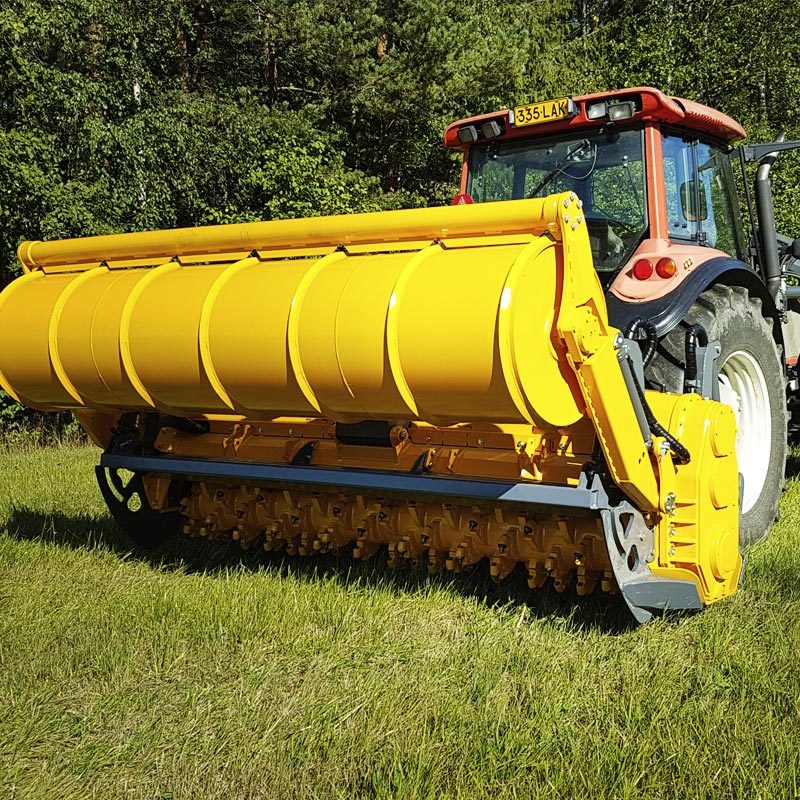

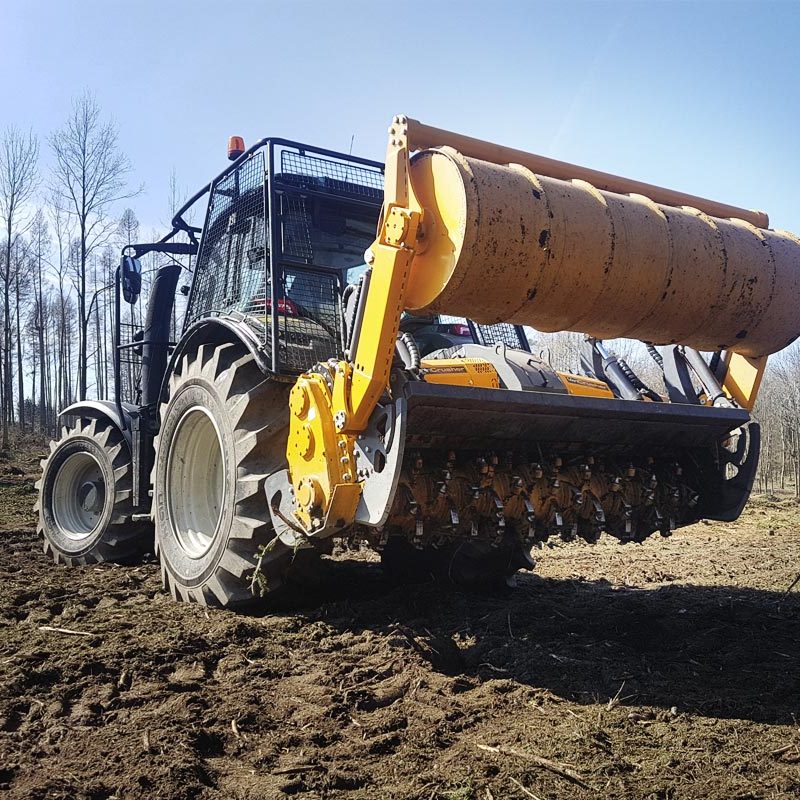

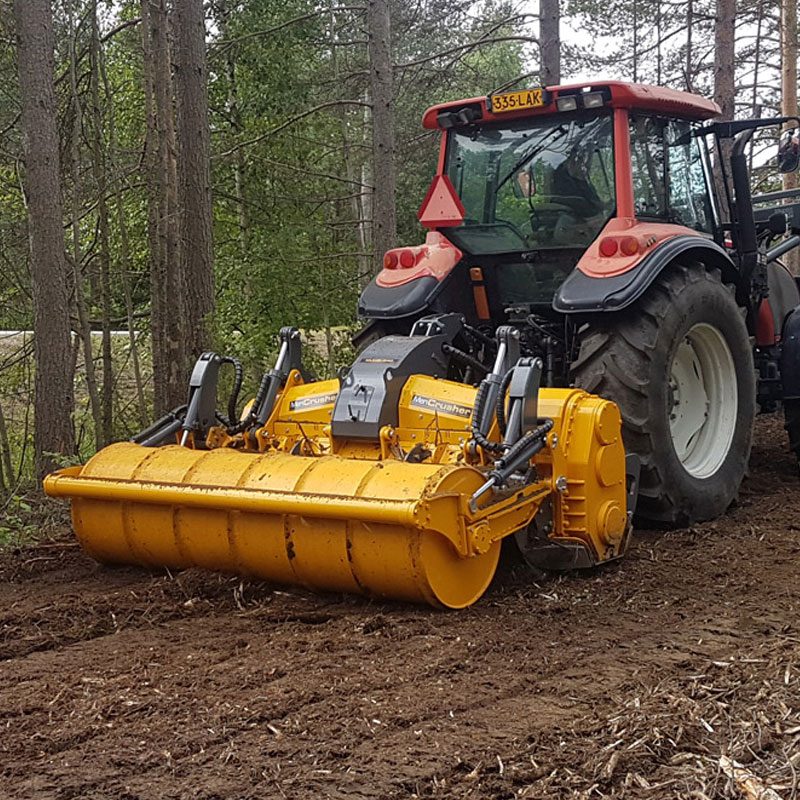

Photo Gallery

Photo Gallery

MJ -MULCHER

Mulcher for versatile use

PTO-driven mulcher and forestry tiller for versatile crushing, the MeriCrusher MJ is your first choice. Light, strong construction makes the MJ series ideal for a wide power range of tractors, to 150 hp. Working in conditions where light weight and durability are paramount, the MeriCrusher MJ gives excellent crushing results. Power is transmitted to the rotor through single or dual double chain drives and always protected by an over load clutch, of either friction disc, or patented POC (pressure operated safety clutch) type, designed by Suokone.

  • STD-rotor with Cost Effective conical carbide cutters for less abrasive, but demanding conditions.
  • STE-rotor with Cost Effective carbide cutters. Available with conical or non rotating more cutting (eagle head) cutters. For abrasive and demanding conditions.
  • UNV4-rotor with Cost Effective carbide cutter. Protecting front part of the holder works as a bite limiter, reducing the stresses of the cutters and making the rotors cutting more smoother. Available with conical or non rotating more cutting (eagle head) cutters. For abrasive and demanding conditions.
